Raz-AT

Mobile Shower Commode Chair

Raz Mobile Shower Commode Chairs — Designed and manufactured to the highest standards of the discerning healthcare professional.

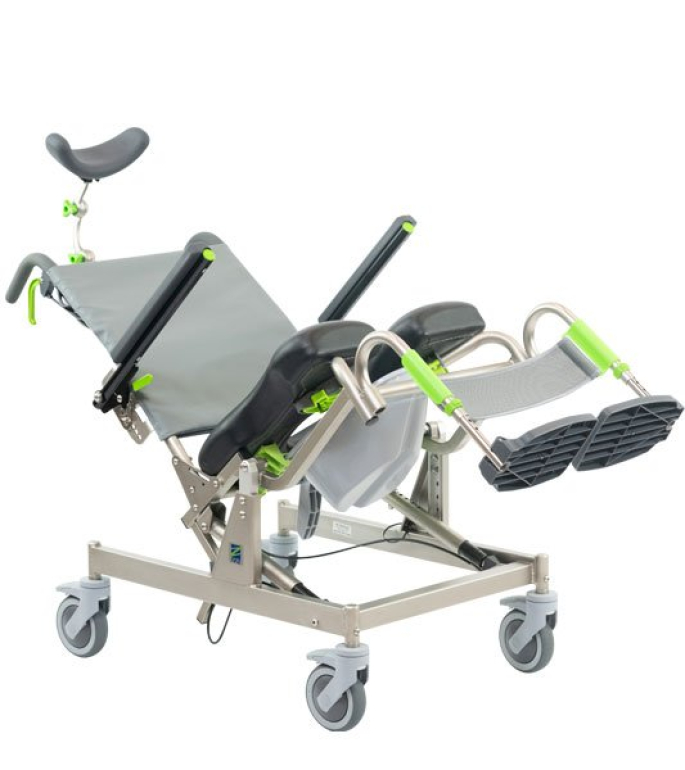

The Raz-AT (Attendant Tilt) mobile shower commode chair tilts up to 40° to provide extra pressure reduction and comfort. The unique frame design utilizes locking gas springs that help lift the seat to an upright position, making the Raz-AT one of the easiest tilting mobile shower chairs to operate.

The Raz-AT mobile shower commode chair comes standard with the Ischial & Pelvic Alignment System (IPAS), 4” of height adjustment, adjustable-tension back upholstery, molded headrest and fixture, 5” dual-locking casters, flip-up padded armrests, and a commode pan. The easy-to-clean, polished stainless steel frame fits over most toilets and is designed for easy side and front access by the user or attendant.

Tilt Function

• seat frame tilts for extra pressure reduction and comfort
• locking pneumatic springs provide infinite adjustment up to 40°
• pressurized springs also help lift seat frame to an upright position
• conveniently located tilt triggers provide smooth tilt control
•

Molded Seat

• contoured for pressure reduction and pelvic stability
• soft integral-skin foam for comfort and durability
• available with open or bridged front
• available sizes: 18″Wx17″D, 18″Wx20″D

Adjustable Footrests

• removable for transfers and cleaning
• swing in and out easily
• flip-up footplate
• adjust for leg length without tools
• available in regular length 16″-20½” and extended length 18″-22½”

Ischial Pelvic Alignment System

• provides 2” of fore/aft adjustment so the seat can be aligned with the pelvis
• allows centering of the aperture (opening) around the users’ ITs
• seat locks in place for transfers
• removes easily for cleaning
• optional spacers for anterior or posterior seat angle adjustment

Fixed Back

• molded, flexible vinyl upholstery – suitable for infection control environments
• includes flip-up, angle-adjustable arms
• 18” back height
• locking armrest upgrade available

Adjustable Pivot Posts

• provides 4” of seat height adjustment without frame / toilet bowl interference

Headrest (small, standard)

• headrest size is approximately 10” W x 4” H
• integral skin foam headrest is easy to clean
• headrest is shaped to cradle the head and can be adjusted to fit looser or tighter
• headrest support can be adjusted infinitely forward and backwards within a 5½” range, and vertically within a 11½” range
• headrest angle can be adjusted for comfort
• headrest – small and mounting fixture are included with Raz-AT (Z300) and Raz-AT600 (Z360) chairs and optional on all other Raz

Tilt Assist Pedal

• Helps attendant initiate tilt for heavier users or users with a forward weight distribution
• enables attendant to use additional strength from legs to tilt larger/heavier users
• solid stainless steel construction fits directly into chair frame
• anti-slip tread on pedal

Commode Pan

• Injection-molded pan is designed for function
• Includes a lid for splash and odor control
• Wide handle angled at 45 degrees provides better ergonomics
• Sloped front of pan moves contents toward the handle to reduce offset load, thereby making it easier to carry
• Receiver brackets under seat are visible from the rear of the chair, making it easier to slide the pan into place
• Fits in a standard autoclave and Arjo Tornado Washer
